OM1 vs OM2 vs OM3 vs OM4 Multimode Fiber: Differences & Selection Guide

Short answer: OM1 uses a 62.5/125 µm core and is mainly retained in legacy networks. OM2, OM3 and OM4 use a 50/125 µm core. OM3 and OM4 are laser-optimized for 850 nm VCSEL systems, with OM4 providing the highest standardized modal bandwidth and longer reach for many high-speed Ethernet links. For a new data-center or high-speed LAN project, OM3 or OM4 is normally the practical starting point; the final choice must match the transceiver, link length, connector count and migration plan.

The labels OM1, OM2, OM3 and OM4 describe standardized categories of graded-index multimode optical fiber. They are not simply color names or marketing grades. Each category combines core geometry, bandwidth and transmission requirements that determine which optical interfaces and distances it can support.

OM1 vs OM2 vs OM3 vs OM4 comparison

These values summarize commonly published category and product performance. Always confirm the actual fiber and cable datasheet because attenuation, bend performance and guaranteed bandwidth can vary within the limits of a category.

Core diameter: why OM1 cannot be treated like OM2, OM3 or OM4

OM1 has a 62.5 µm core, while OM2, OM3 and OM4 use a 50 µm core. Connecting different core sizes can create directional loss and unpredictable system margin. A link that launches from a 62.5 µm fiber into a 50 µm fiber may lose light because the receiving core is smaller. For upgrades, identify every installed trunk, patch cord, adapter and test reference cord instead of relying only on jacket color.

Bandwidth: OFL versus effective modal bandwidth

Overfilled launch bandwidth (OFL) characterizes the fiber when many modes are excited. Effective modal bandwidth (EMB) is especially important for 850 nm laser-based systems because it describes performance under a launch condition closer to a VCSEL transmitter. OM3 and OM4 are controlled for high EMB, which is the main reason they support longer high-speed links than legacy multimode categories.

Typical Ethernet reach

Reach is a system value, not a fiber-only promise. Transceiver specification, connector loss, splice loss, modal launch, cable quality and installation condition all consume margin. Use the governing IEEE interface specification and an engineered channel budget for approval.

OM3 or OM4: which should a new project choose?

Choose OM3 when the required interface and length fit comfortably within OM3 limits and project economics favor a widely available laser-optimized fiber. Choose OM4 when the link approaches an OM3 distance limit, future upgrades are likely, connector density is high or additional modal bandwidth margin is valuable.

OM4 does not automatically improve a link if the optics, connector cleanliness or installation are the real constraint. Likewise, specifying OM4 fiber inside a cable does not replace the need to qualify the complete cabled product.

Bend-insensitive OM3 and OM4 fiber

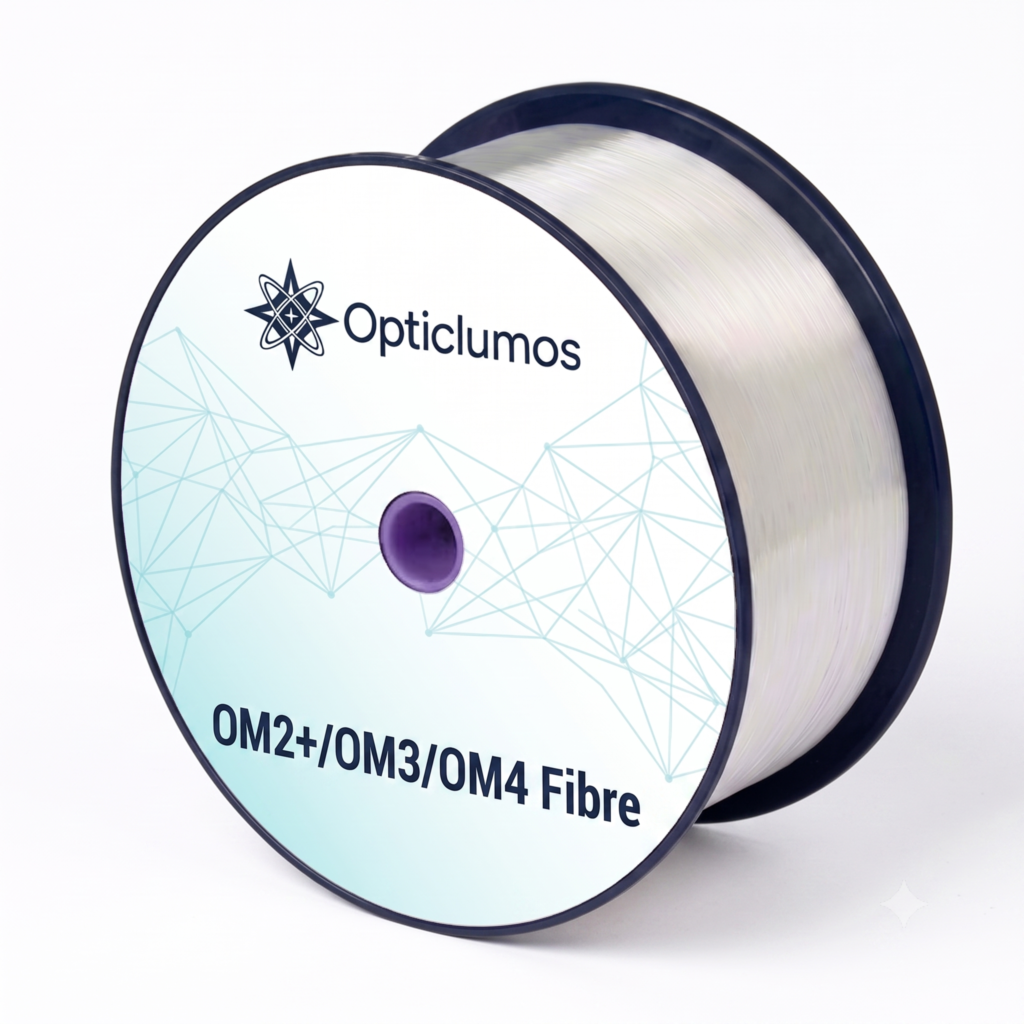

Bend-insensitive designs reduce macrobending loss in compact routing, high-density panels and tight cable constructions. The benefit is important, but compatibility, minimum bend radius, attenuation after cabling and mechanical reliability still need review. See the OM3/OM4 bend-insensitive multimode fiber product page for available performance references.

Can OM3 and OM4 be mixed?

Both are 50/125 µm fibers, so a physical connection is possible. However, the channel must be designed to the performance of its lowest category and every component should be documented. Mixing categories can complicate certification, troubleshooting and future asset management. For new installations, using one clearly identified category end-to-end is usually preferable.

Connector color is useful, but not proof

Common practice associates orange with OM1/OM2 and aqua with OM3/OM4, but installed systems and custom assemblies may not follow the expected convention. Confirm markings, records and test results. Never approve a migration solely from jacket or connector color.

Testing and acceptance

• Insertion loss: test the complete channel with suitable reference cords and launch conditions.
• Length and polarity: verify every path, especially MPO/MTP parallel-optics channels.
• Connector inspection: inspect and clean before mating; contamination can dominate the loss budget.
• OTDR: use appropriate multimode settings when event location or documentation is required.
• Certification: compare results with the selected application standard and project loss budget.

For background on loss and wavelength effects, read the Fiber Optic Attenuation Guide.

RFQ checklist for multimode fiber

For a project-specific recommendation, send your interface, link length, fiber count and cable requirements for technical review.

Frequently asked questions

Is OM4 always better than OM3?

OM4 provides higher modal bandwidth, but OM3 can be sufficient and more economical when the required interface and distance fit comfortably within its limits.

Can OM1 connect directly to OM3 or OM4?

The connectors may mate, but the 62.5 µm to 50 µm core transition can create directional loss. A controlled migration design is required.

Does OM4 support 40G and 100G?

Yes, for specified short-reach parallel-optics interfaces and distances. Confirm the exact IEEE interface, polarity and connector configuration.

What is the difference between OM3 and OM4?

Both are 50/125 µm laser-optimized multimode fibers. OM4 has higher effective modal bandwidth and supports longer reach for several high-speed interfaces.

Should a new installation use OM1 or OM2?

They are mainly relevant to legacy compatibility. New high-speed multimode projects normally evaluate OM3 or OM4, or single-mode fiber when reach and future scaling justify it.
