SPECIALTY OPTICAL FIBERS & POLARIZATION-MAINTAINING FIBER SOLUTIONS
Opticlumos manufactures polarization-maintaining (PM) fibers and custom specialty optical fibers for fiber-optic gyroscopes (FOGs), precision sensing, laser delivery and optical communications. Application-specific designs are available with controlled birefringence, dispersion and fiber geometry.

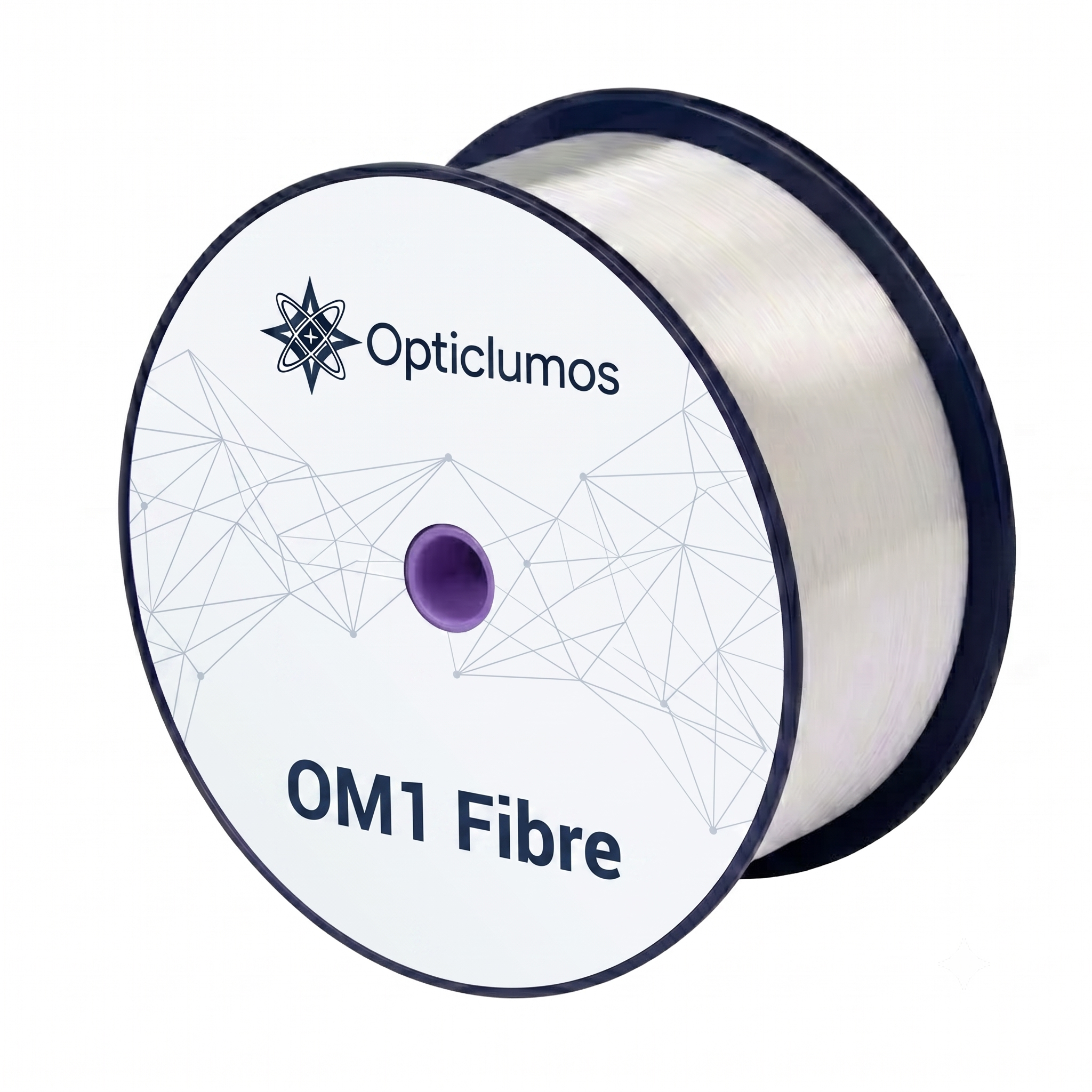

OM1 (62.5/125µm)
Multimode Fibre
Optimized for Local Area Networks (LAN) and gigabit ethernet using laser or LED light sources. Features superior geometry uniformity and stable performance for legacy fiber optic communication systems.

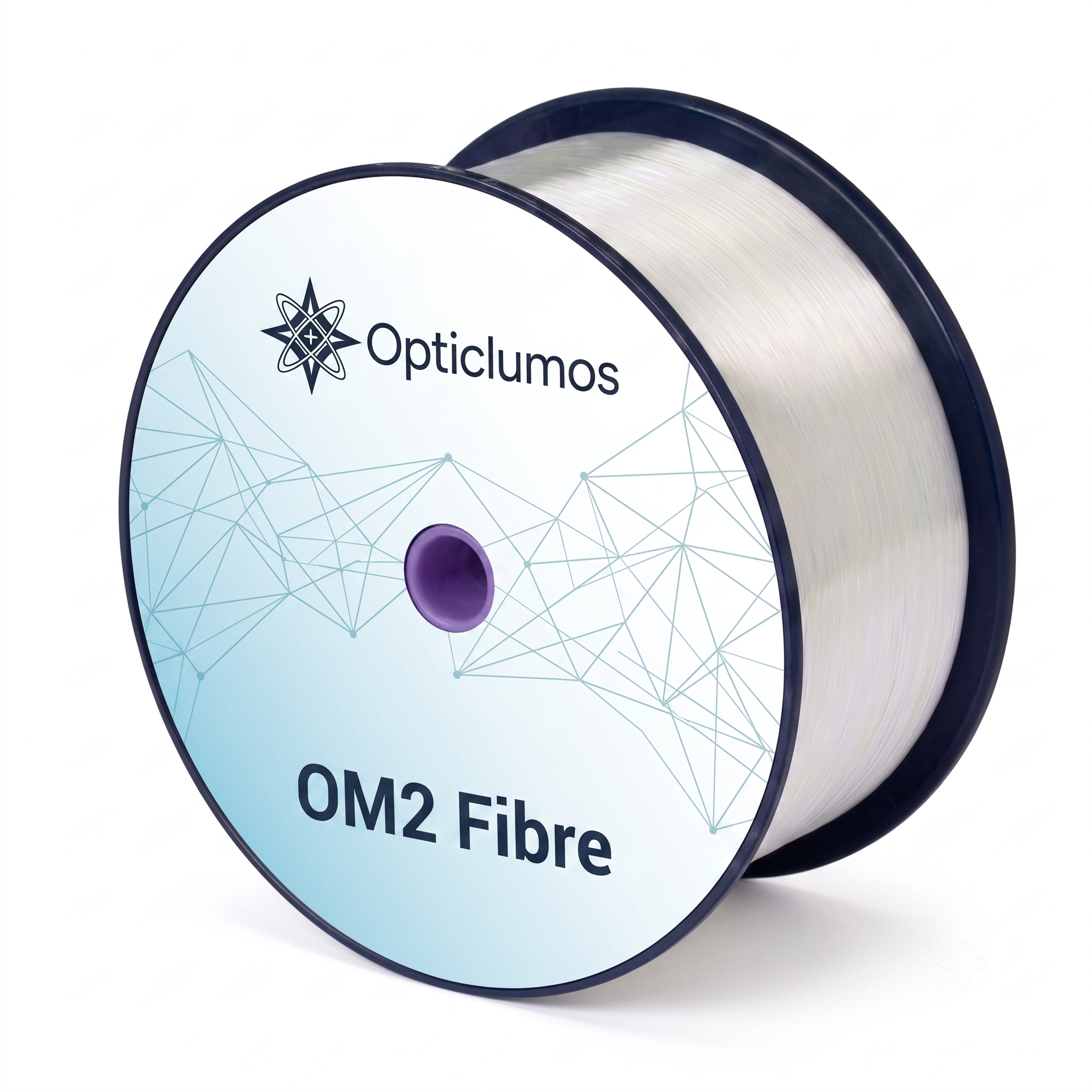

OM2 (50/125µm) Bending Insensitive Fibre
Highly reliable bending insensitive multimode fibre offering high bandwidth at 850nm and 1300nm wavelengths. Ideal for LAN, video, voice, and robust data services.

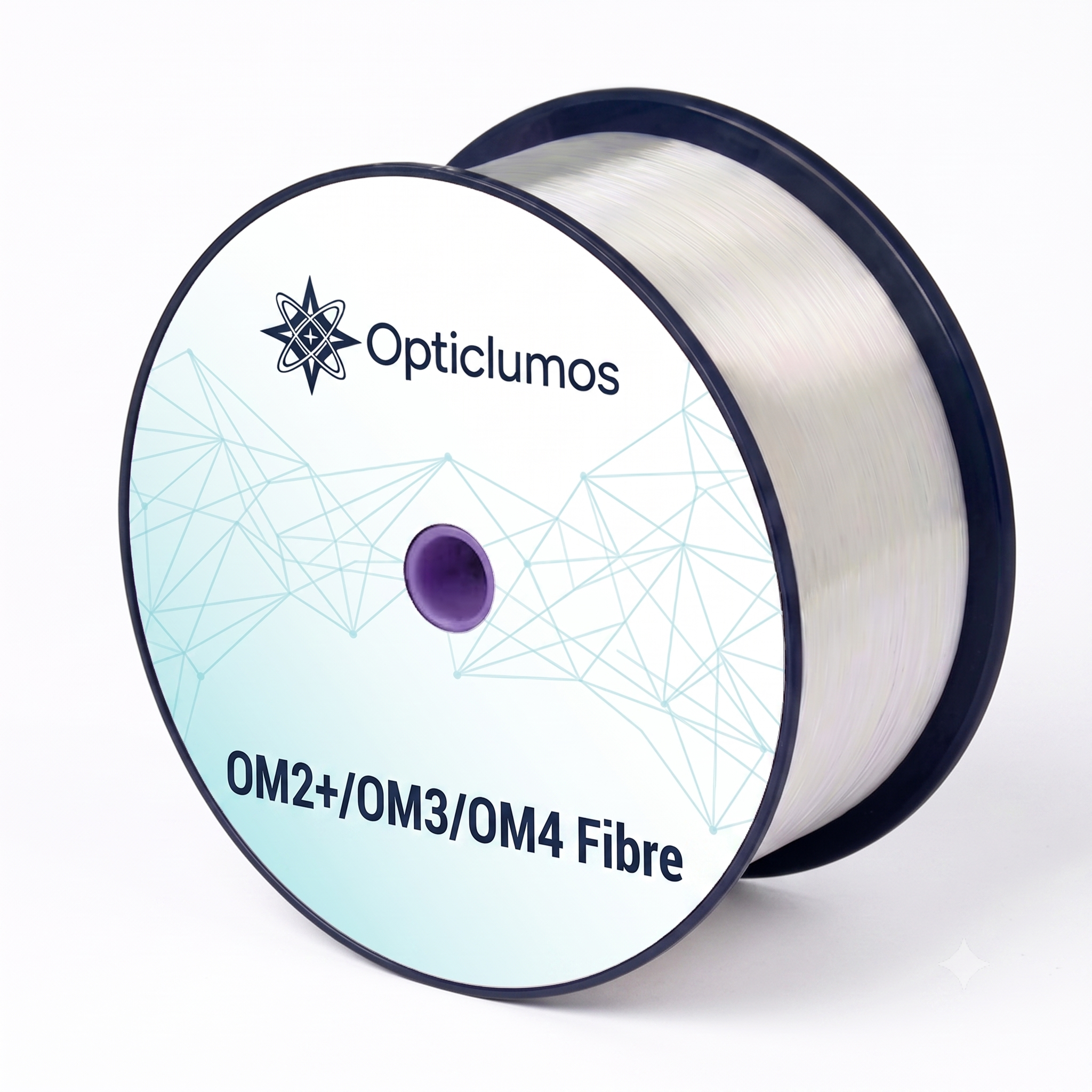

MaxBand® OM2+/OM3/OM4 Multimode Fibre
Next-generation bending insensitive fibers optimized for 850nm VCSELs. Designed for 10G, 40G, and 100G Ethernet in high-performance computing and data center fiber-optic communication.

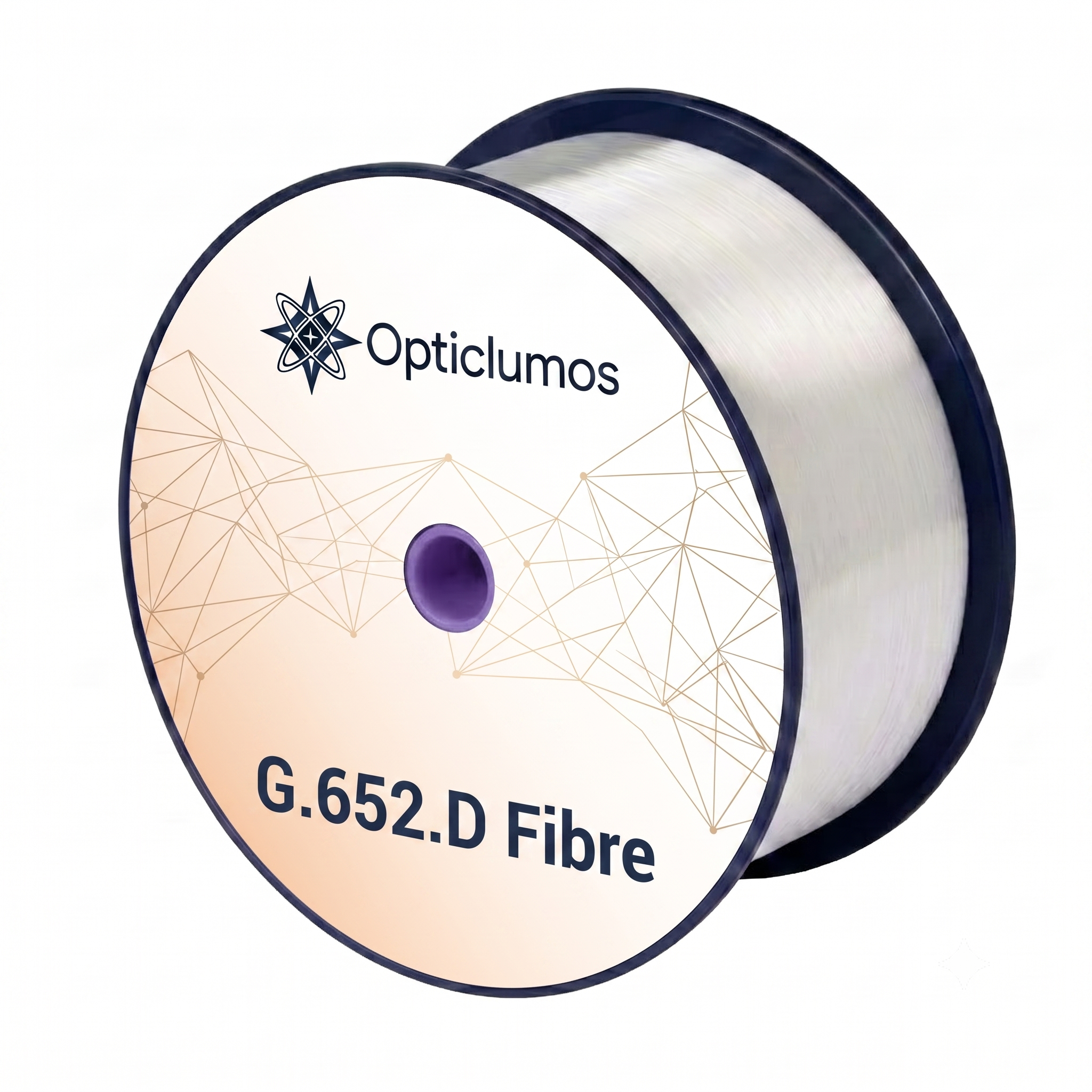

FullBand® G.652.D Single-mode Fibre
Full-spectrum (1260-1625 nm) single-mode fiber suppressing the water peak near 1383 nm. The optimum choice for DWDM, CWDM, and backbone optical fiber communication.

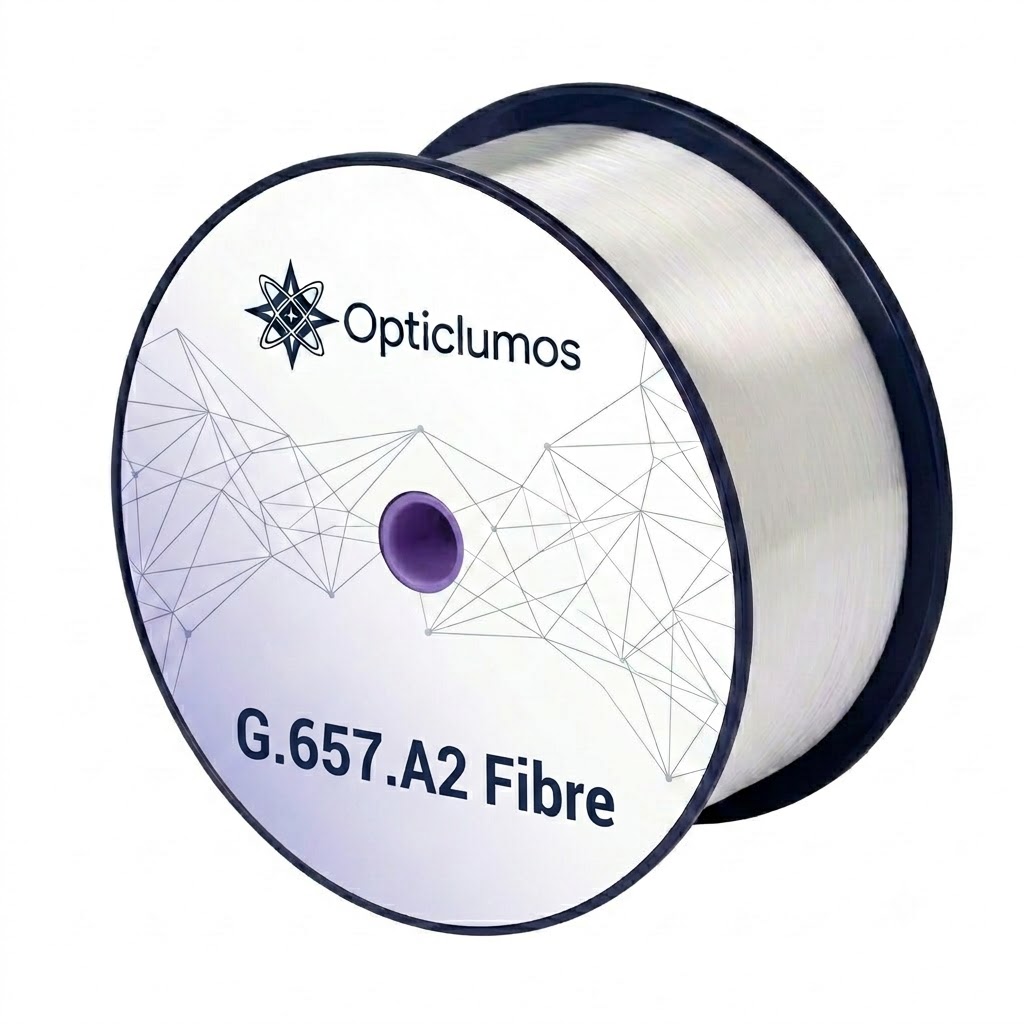

EasyBand® Plus G.657.A2 Single-mode Fibre
Combines excellent low macro-bending sensitivity and low water-peak levels. The ultimate solution for Fibre-to-the-Home (FTTH) networks and tight-buffer cable designs.
Communication Optical Fiber Selection Guide
Choose optical fiber by transmission distance, bend radius, operating wavelength and network standard. OpticLumos supplies single-mode and multimode options for telecom, FTTx, data center, access network and industrial connectivity projects. FullBand®, EasyBand® and MaxBand® product families are available for qualified B2B inquiries.
Quick Product Selection
- G.652.D: general long-distance backbone and metro transmission with low water-peak performance.
- G.657.A2: bend-insensitive access, FTTH, compact routing and indoor deployment.
- OM1/OM2: legacy and short-reach multimode network upgrades.
- OM3/OM4: high-speed data center and enterprise links using 850 nm VCSEL transmission.
Frequently Asked Questions
Which communication fiber should I choose?
Use G.652.D for conventional long-distance single-mode links, G.657.A2 where tight bends are expected, and OM3 or OM4 for high-speed short-reach multimode links. Share the wavelength, distance, cable design and minimum bend radius for a precise recommendation.
Can I request a datasheet, sample or quotation?
Yes. Current datasheets, sample availability and volume quotations can be provided after the fiber type, quantity, delivery destination and test requirements are confirmed.
What should be included in an RFQ?
Please include the fiber standard, operating wavelength, attenuation target, coating diameter, order length, packaging, test-report requirements and destination country.
Are OEM and project-specific requirements supported?
Project-specific fiber selection, packaging, documentation and inspection requirements can be reviewed against the requested specification before quotation.
