Multicore Polarization-Maintaining Armored Optical Cable
A tight-buffered, multicore PANDA-type polarization-maintaining (PM) fiber optic cable engineered for high-birefringence signal transmission in demanding field and industrial environments. Built with imported aramid yarn and a non-metallic central strength member for tensile reinforcement, then armored and jacketed for long-term outdoor, indoor, and duct installation. Ideal for fiber optic gyroscopes (FOG), coherent optical communication, distributed fiber sensing, EDFA/DWDM modules, and other polarization-sensitive photonic systems.
Product Description
The multicore polarization-maintaining armored optical cable utilizes multiple 900μm tight-buffered polarization-maintaining optical fibers as the transmission medium. It employs imported aramid fibers and non-metallic central strength members as tensile reinforcement elements. The cable core (comprising tight-buffered optical fibers, aramid, and non-metallic central strength members) is sequentially processed with inner sheathing, armoring, and outer sheathing.
As a fiber optic cable manufacturer specializing in special/specialty optical fibers, we engineer this PANDA polarization-maintaining armored cable to hold its polarization extinction ratio (PER) and low insertion loss under real-world tensile load, crush, and bending stress — not just in a lab datasheet. Every reel is tested at 1310 nm before shipment, and cable length, sheath material, and connector termination can be customized to your project's exact requirements.
Product Features
- ✓ Utilization of tight-buffered polarization-maintaining optical fiber
- ✓ Incorporation of aramid and non-metallic reinforcement components
- ✓ Precise manufacturing processes with scientifically sound cable design

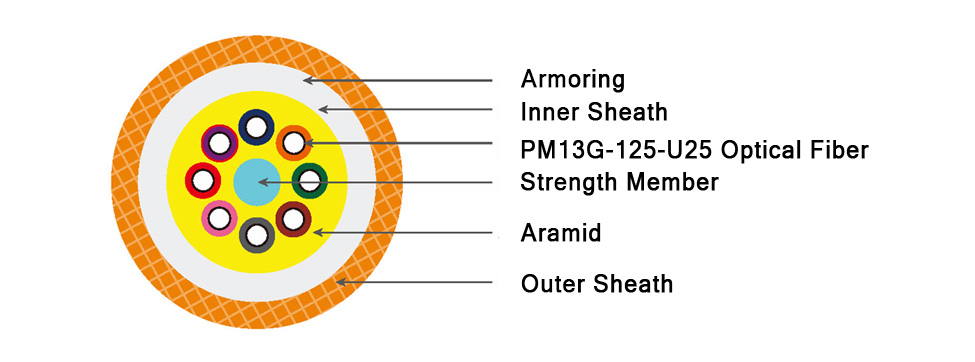

Optical Cable Structure
Product Specification
| Model | Diameter | Tight-Buffered Fiber Diameter | Allowable Tensile Load Short-term / Long-term |
Allowable Crush Long-term / Short-term |
Bending Radius Dynamic / Static |
|---|---|---|---|---|---|
| Unit | mm | μm | N | N/100mm | D |
| Multicore Polarization-Maintaining Armored Optical Cable (1–8 cores) | 9.5±0.5 | 900±50 | 600/200 | 300/1000 | 20/10 |
| Characteristics | Unit | Product Specifications |
|---|---|---|
| Optical Characteristics | ||
| Operating Wavelength | nm | 1310 |
| Cutoff Wavelength | nm | 1100–1290 |
| Mode Field Diameter @1310nm | μm | 6.0±0.5 |
| Attenuation @1310nm | dB/km | <1.0 |
| Proof Test @1310nm | mm | <3.0 |
| Crosstalk @1310nm | dB/100m | <-25 |
| Temperature Characteristics | ||
| Storage Temperature | °C | -40~+60 |
| Operating Temperature | °C | -40~+60 |
Delivery Length
- Recommended Length: 2000 meters
- Other lengths available upon customer request
Remark
- Specific technical and performance specifications of the product can be discussed and confirmed in detail based on the specific application requirements of the customer. Customized product development can be undertaken accordingly.
- The outer sheath material options include Polyvinyl Chloride (PVC), Low Smoke Zero Halogen Flame-Retardant Material (LSZH), and Thermoplastic Polyurethane (TPU). The choice of sheath material will depend on the specific application environment as confirmed by the customer.
Typical Applications
This PANDA-type polarization-maintaining armored optical cable is selected by system integrators and research labs wherever a stable polarization state and rugged mechanical protection are both required in the same cable run:
Fiber Optic Gyroscopes (FOG)
Inertial navigation and stabilization systems requiring high extinction ratio PM fiber.
Coherent Optical Communication
Polarization-sensitive transmitters, receivers, and modulator pigtails.
Distributed Fiber Optic Sensing
Acoustic, vibration, and temperature sensing where polarization stability affects signal fidelity.
EDFA & DWDM Modules
Pump and isolator pigtailing inside amplifier and wavelength-division multiplexing modules.
Quantum & Precision Optics
Quantum key distribution (QKD) links and interferometric measurement systems.
Industrial & Field Deployment
Armored construction supports duct, tray, and light outdoor installation where crush and tensile loads occur.
Frequently Asked Questions
What type of polarization-maintaining fiber is used in this cable?
The cable uses PM13G-125-U25 PANDA-type polarization-maintaining fiber, tight-buffered to 900±50 μm, available in 1 to 8 cores per cable.
How much tensile load and crush resistance can the cable withstand?
The cable is rated for 600 N short-term / 200 N long-term allowable tensile load, and 1000 N/100mm short-term / 300 N/100mm long-term allowable crush resistance.
What outer sheath materials are available?
PVC, Low Smoke Zero Halogen (LSZH) flame-retardant material, and Thermoplastic Polyurethane (TPU) are all available; the best option depends on your installation environment.
What is the recommended cable length, and can it be customized?
The recommended delivery length is 2000 meters per reel; other lengths, core counts, and sheath materials are available upon request for custom projects.
Need a Custom PM Fiber Cable Build?
Tell us your core count, length, sheath, and environment — we'll confirm specifications and lead time.
